A stethoscope does not look complicated at first. There is a chestpiece at one end, earpieces at the other, and tubing connecting them. But when you place it against a patient, several components have to work together before a sound reaches your ears clearly.
Knowing the main stethoscope parts can help you understand how the instrument works and why something as small as a loose eartip or damaged diaphragm can affect what you hear. It can also make everyday care and troubleshooting easier, whether you are a nursing student, nurse, doctor, or another healthcare professional.
It helps to follow the sound before looking at each component separately. When the chestpiece is placed against the body, sounds from the heart, lungs, or other areas create vibrations. The chestpiece responds to those vibrations and sends the sound into the tubing.
From there, the sound travels through the tubing toward the metal ear tubes and finally reaches your ears through the eartips. It is a simple path, but every component along the way has a job to do.
At ScopeClip, healthcare professionals can find stethoscopes essential for daily patient care. Understanding how the different stethoscope parts work together makes it easier to identify potential problems. A poor eartip seal, damaged tubing, or incorrectly positioned chestpiece can make listening more difficult, even when the rest of the instrument is functioning properly.
The chestpiece is the part you place against the patient’s body. Depending on the model, it may have a diaphragm on one side and a bell on the other, or it may use a single-sided design.
The diaphragm is the larger, flat surface of the chestpiece. Traditionally, it is used to hear higher-frequency sounds, including many normal heart and lung sounds.
Good contact matters. Clothing, poor positioning, or a diaphragm that is not sitting securely can interfere with sound transmission.
Some modern stethoscopes also use a tunable diaphragm. Instead of switching between separate listening surfaces, the user can hear different frequency ranges by changing the amount of pressure applied to the chestpiece.
The traditional bell is smaller and cup-shaped. It is designed for lower-frequency sounds and is generally placed lightly against the skin. Pressing too firmly can stretch the skin beneath it and make it behave more like a diaphragm.
Not every modern stethoscope has a separate open bell. Some models use tunable technology or other chestpiece designs instead.
The stethoscope diaphragm vs. bell difference becomes easier to understand when you think about what you are trying to hear. Both sit on the chestpiece, but they are traditionally used for different ranges of sound.
The diaphragm is the side you will likely use most often during a routine exam. Its larger, flat surface is suited to higher-frequency sounds, including many heart and lung sounds. It is usually held firmly against the skin so the surface can respond clearly to the vibrations underneath.
The bell is useful when you need to listen for lower-frequency sounds. Unlike the diaphragm, a traditional bell works best with light contact. Pressing it too firmly against the skin can make it less effective at picking up the low frequencies you are trying to hear.
The traditional stethoscope diaphragm vs. bell rule does not apply in exactly the same way to every modern stethoscope. A tunable diaphragm can respond to different frequency ranges depending on how much pressure you apply. That means you may be able to change what you hear without turning the chestpiece over.
If you are new to using a stethoscope, this difference can take a little practice to get used to. Rather than focusing only on which side you are holding, pay attention to the sound you need to hear, the pressure you are applying, and the design of the stethoscope in your hands.
Some stethoscope parts do not get much attention because they sit beside larger, more familiar components. They may be small, but they still help the stethoscope function properly. The stem, rim, and non-chill ring each have a specific purpose and are worth knowing about.
The stem connects the chestpiece to the tubing and provides a path for sound to travel. On many dual-sided models, turning the chestpiece at the stem also determines which side is open for listening. The exact setup can vary by model, so someone using a Littmann stethoscope may notice a slightly different chestpiece design depending on the model they have.
Around the diaphragm or bell, you may also find a rim or non-chill ring. These components help secure the listening surface and keep cold metal from making direct contact with the patient’s skin.
The flexible tubing connects the lower and upper sections of the stethoscope, but its job is not simply to hold them together. It provides the enclosed pathway that carries sound from the chestpiece toward the ears.
Tubing needs to remain flexible and intact. Cracks, splits, damaged connection points, or significant hardening are signs worth checking. Some stethoscopes use a single sound pathway, while others have two acoustic paths contained within one outer tube.
A stethoscope tubing replacement may be considered when the original tubing becomes damaged or no longer performs as intended.
A small mark on the outside does not automatically mean the tubing needs to go. Look for more meaningful changes, such as visible cracking, splitting, unusual stiffness, or damage where the tubing joins another component.
If sound problems continue after checking the eartips, chestpiece, and diaphragm, the tubing may also deserve closer inspection. Before attempting a stethoscope tubing replacement, check the manufacturer’s instructions and make sure the replacement is compatible with your specific model.
Once sound reaches the upper stethoscope parts, it moves through the metal ear tubes, also known as binaurals, before reaching the eartips. These components guide the sound toward your ears while helping the headset sit comfortably and securely during use.
The ear tubes connect the flexible tubing to the eartips and help carry sound through the final part of the stethoscope. They are usually angled forward to follow the natural direction of the ear canals. This small design detail helps the eartips sit more comfortably and create a better seal while you listen.
Headset tension can also affect comfort and fit. Depending on the model, the binaurals may be adjusted slightly to make the headset tighter or looser.
Eartips may be small, but fit matters. A snug seal helps reduce outside noise and allows sound from the stethoscope to reach the ears more effectively.
Eartips that are too loose, worn, damaged, or poorly sized may make listening harder. Replaceable eartips are available for many models, but compatibility should always be checked first.
Putting the headset on backward is an easy mistake to make. The ear canals naturally angle forward, so the eartips should generally point toward the front of your nose when inserted.
If they point backward, they may not sit properly in the ear canals. This can create a weak seal and make the stethoscope seem quieter than it actually is.
How you carry the instrument between uses matters too. A stethoscope holder can provide a convenient way to keep it accessible during a shift without simply stuffing it into a pocket or leaving it on a work surface.

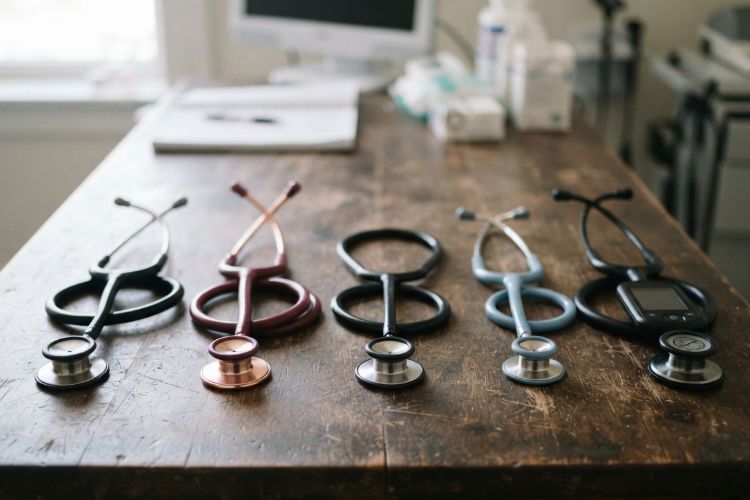

Once you start comparing models, you will notice that the core stethoscope parts do not always look identical. Some stethoscopes have a traditional two-sided chestpiece, while others use a single-sided tunable diaphragm. Pediatric models may have smaller chestpieces designed for smaller patients. Tubing construction can also differ between general-purpose and more specialized models.
Electronic and digital stethoscopes add another layer. They may include features such as sound amplification or recording while still using many of the familiar components found on acoustic models.
Conclusion
A stethoscope works well because several simple components do different jobs along the same sound pathway. The chestpiece picks up vibrations, the tubing carries the sound, and the headset delivers it to your ears.
Understanding these stethoscope parts makes it easier to use the instrument correctly and notice when fit, wear, or damage may be affecting its performance. You do not need to memorize every small component, but knowing what happens between the chestpiece and your ears can make everyday use much less confusing.
What are the main parts of a stethoscope?
The main components include the chestpiece, diaphragm, bell on applicable models, stem, flexible tubing, ear tubes or binaurals, and eartips.
Do all stethoscopes have a separate bell?
No. Traditional dual-sided stethoscopes often have a diaphragm and bell, while some newer models use a tunable diaphragm or single-sided chestpiece instead.
Why can’t I hear clearly through my stethoscope?
Check the direction and fit of the eartips, chestpiece selection, diaphragm condition, tubing, and contact with the patient’s skin. Any of these can affect listening quality.
Can stethoscope eartips and diaphragms be replaced?
Many models have replaceable eartips, diaphragms, and other components. The exact parts available depend on the brand and model, so check compatibility before purchasing replacements.
